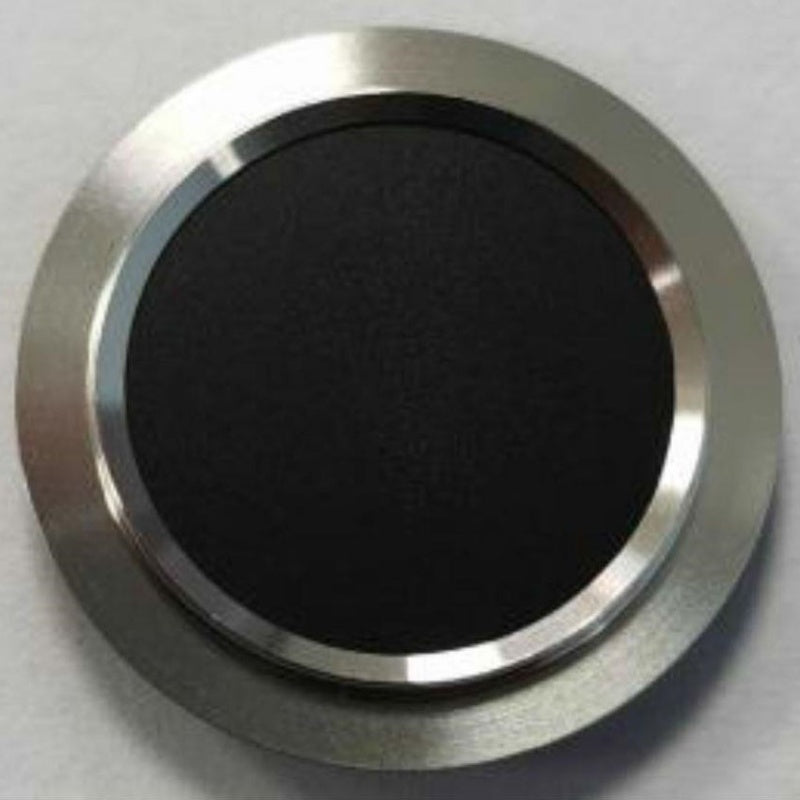

GK0393 Round Integrated Fingerprint Module Without Perimeter LED Ring
Developed for fingerprint applications across various industries, this multifunctional fingerprint module integrates a capacitive fingerprint sensor, MCU and fingerprint algorithm as an all-in-one unit. It features low power consumption, stable performance, excellent image quality, reliable anti-static property and high consistency. The module adapts well to all types of special fingerprints and achieves outstanding recognition performance for dry, wet, faint and scratched fingerprints.
Pixel: 112*96

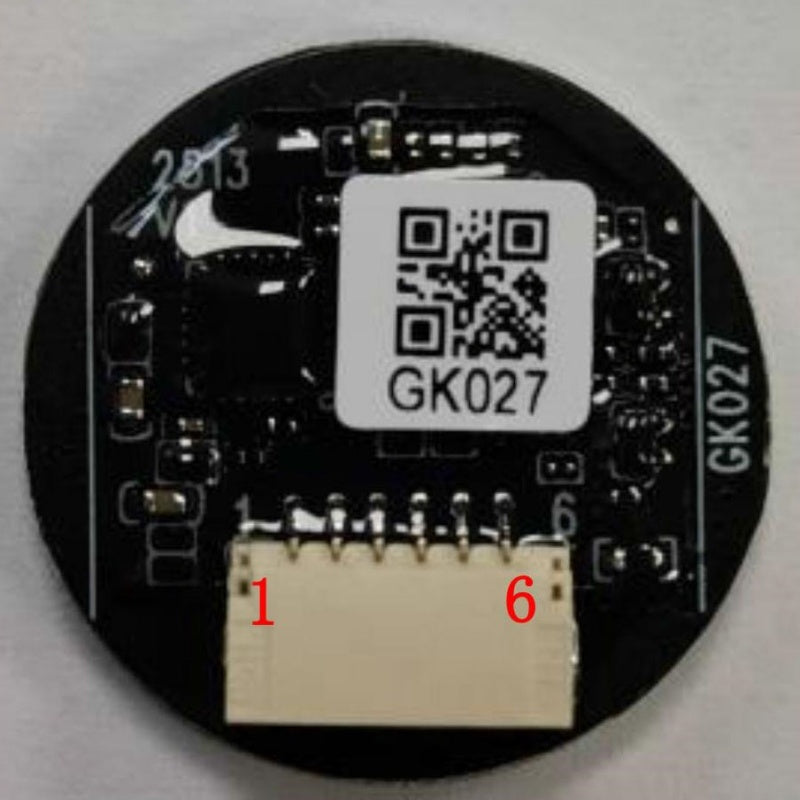

Dimensions: Diameter 14 mm, Height 1.75 mm; horizontal FPC connector with 0.5 mm pitch
Press-type capacitive fingerprint sensor
Clear image quality
Resolution: 508 dpi
8-bit grayscale pixel
Ultra-low power consumption design
ESD protection: 15KV air discharge / 8KV contact discharge
Wake-up function
Secure MCU
Advanced fingerprint algorithm
