Product Introduction

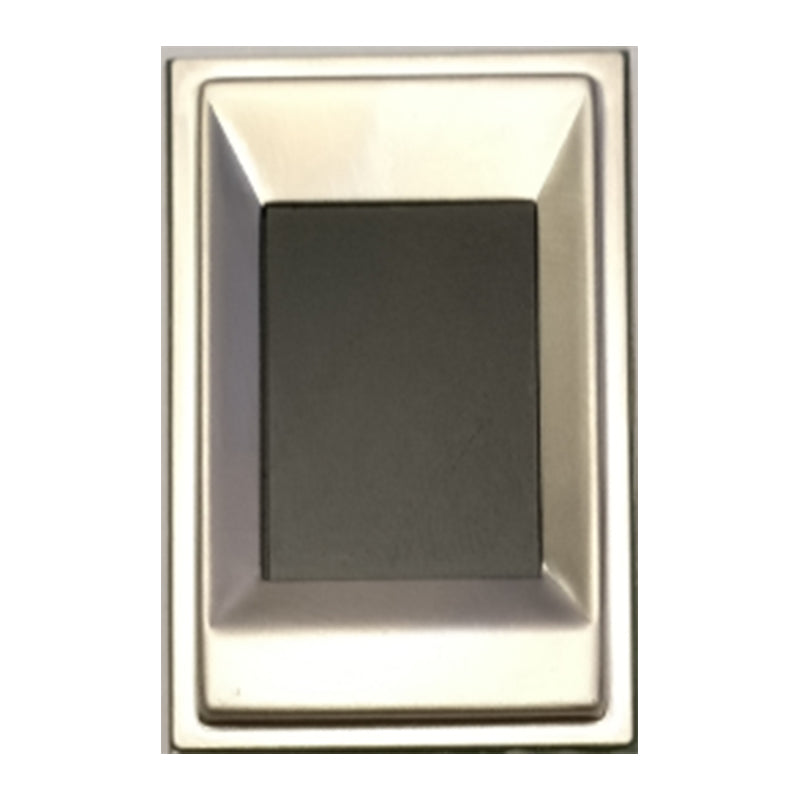

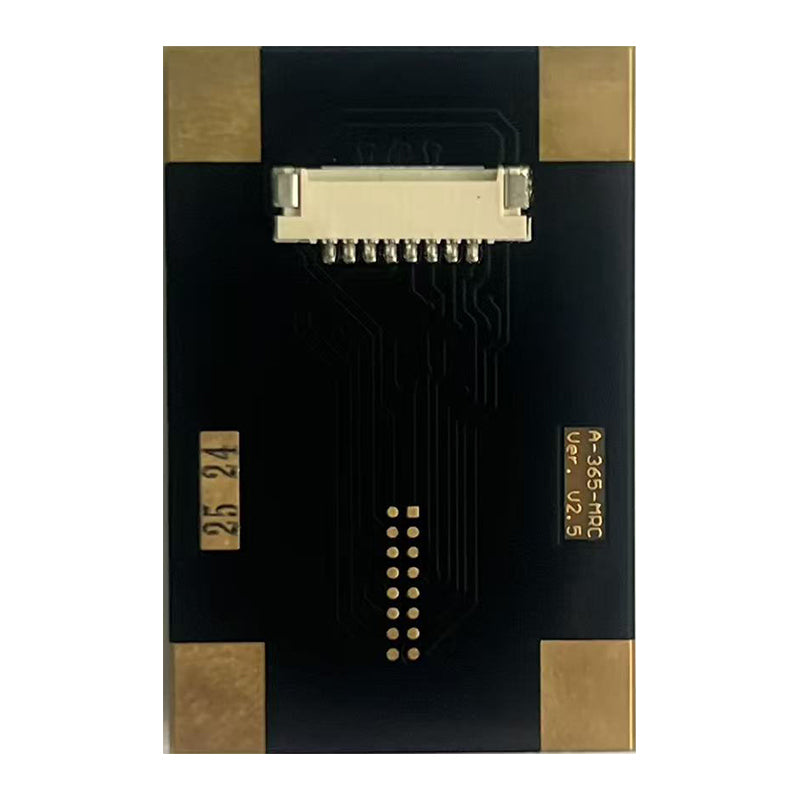

1. Large-area fingerprint sensor.
Sensor dimensions: 35 mm × 23 mm × 2.75 mm.
Effective image area: 18.0 mm × 12.8 mm.
Pixel resolution: 256 × 360 pixels.
360° fingerprint capture.
Resolution: 508 DPI high-quality imaging.
Fingerprint image meets FBI‑PIV FAP 10 image requirements.

2. Faster recognition speed and high anti-interference capability.
Captures a wider range of fingerprints, with excellent adaptability to dry, wet, and peeling fingerprints.
Supports image enhancement mode, which can adjust imaging in real time according to the environment to generate optimal fingerprint images.

3. High-performance specifications:
Low power consumption: sleep current as low as 2 μA.
High durability: withstands over 5 million finger placements.
IP67 protection rating.
Surface hardness greater than 7H, protecting the sensor from scratches, impacts and daily wear.
Wide operating temperature range: -40 ℃ to +80 ℃.
