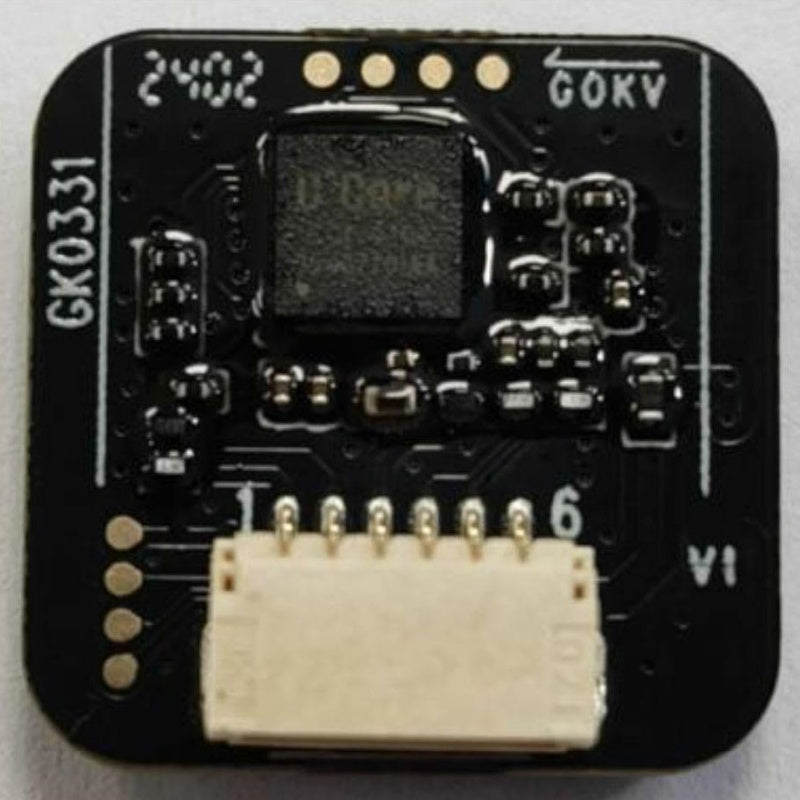

GK0331 Square Integrated High-gloss Black Fingerprint Module
Developed for fingerprint applications in various industries, this multifunctional fingerprint module integrates a capacitive fingerprint sensor, MCU and fingerprint algorithm. It features low power consumption, stable operation, excellent image quality, reliable anti-static performance and high consistency. The module adapts excellently to all kinds of abnormal fingerprints and realizes high recognition accuracy for dry, wet, faint and scratched fingerprints.
Pixel: 100*96
Dimensions: 14 mm × 14 mm, Height 3.2 mm; horizontal connector with 1.0 mm pitch

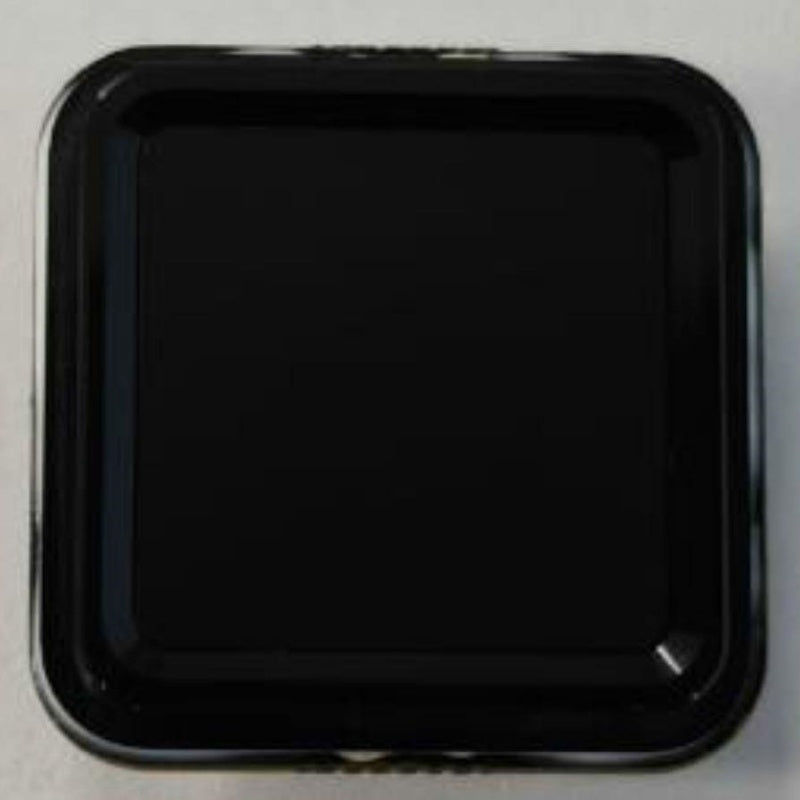

Press-type capacitive fingerprint sensor
Clear image quality
Resolution: 508 dpi
8-bit grayscale pixel
Ultra-low power consumption design
ESD protection: 15KV air discharge / 8KV contact discharge
Wake-up function
Secure MCU
Advanced fingerprint algorithm
