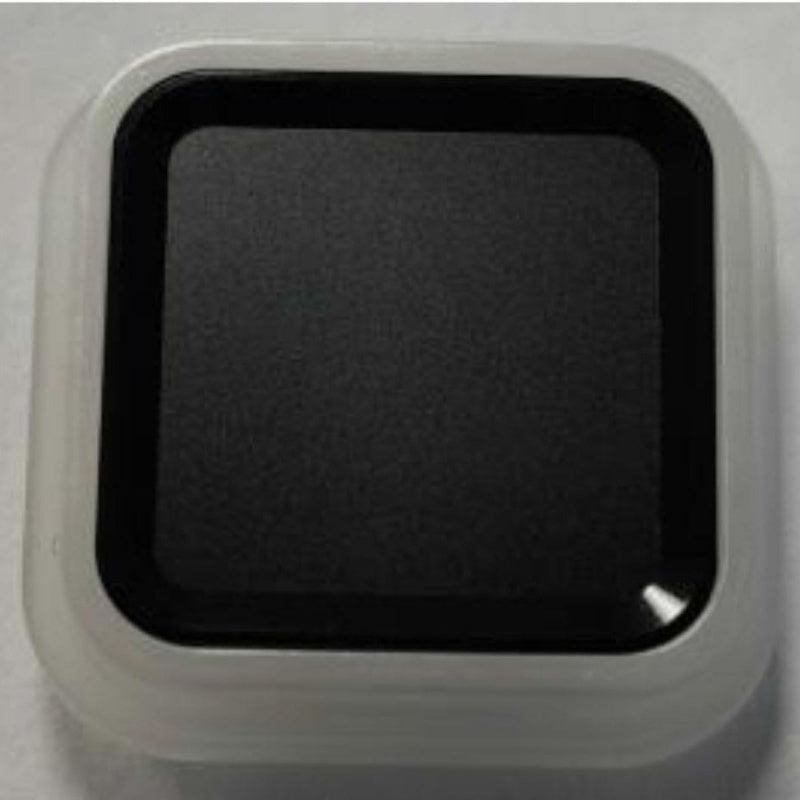

GK0321 Square Integrated Fingerprint Module with Perimeter LED Ring
Developed for fingerprint applications in diverse industries, this multifunctional fingerprint module integrates a capacitive fingerprint sensor, MCU and fingerprint algorithm into a single unit. It boasts low power consumption, stable operation, excellent image quality, robust anti-static performance and favorable consistency. The module features great adaptability to various abnormal fingerprints and delivers reliable recognition results for dry, wet, faint and scratched fingerprints.
Pixel: 100*96

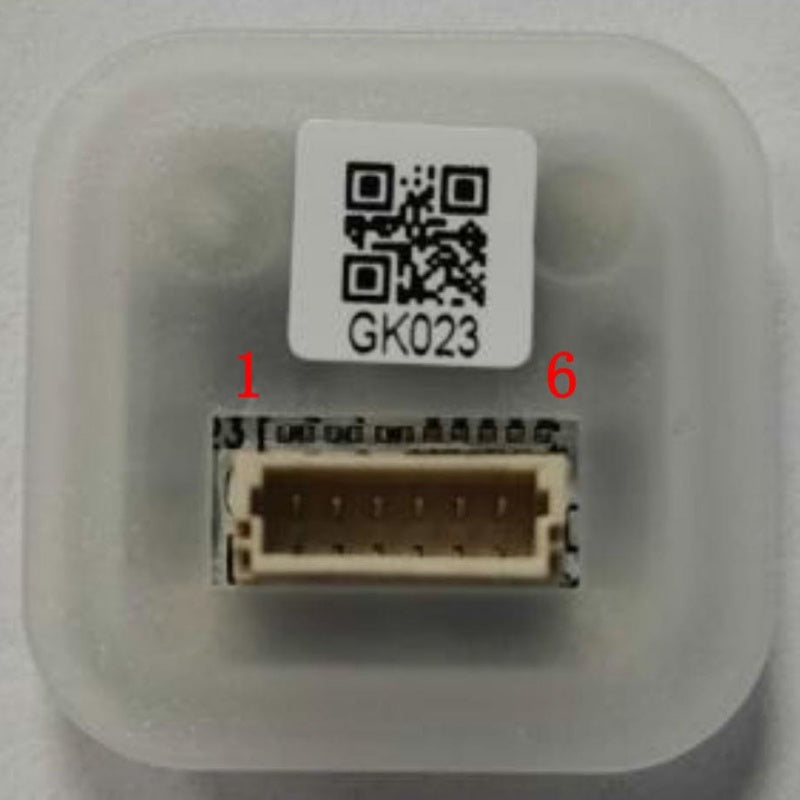

Dimensions: 16.5 mm × 16.5 mm, Height 5.5 mm; vertical connector with 1.0 mm pitch
Press-type capacitive fingerprint sensor
Clear image quality
Resolution: 508 dpi
8-bit grayscale pixel
Ultra-low power consumption design
ESD protection: 15KV air discharge / 8KV contact discharge
Wake-up function
Secure MCU
Advanced fingerprint algorithm
Vibrant multi-color lighting effects of the perimeter LED ring
