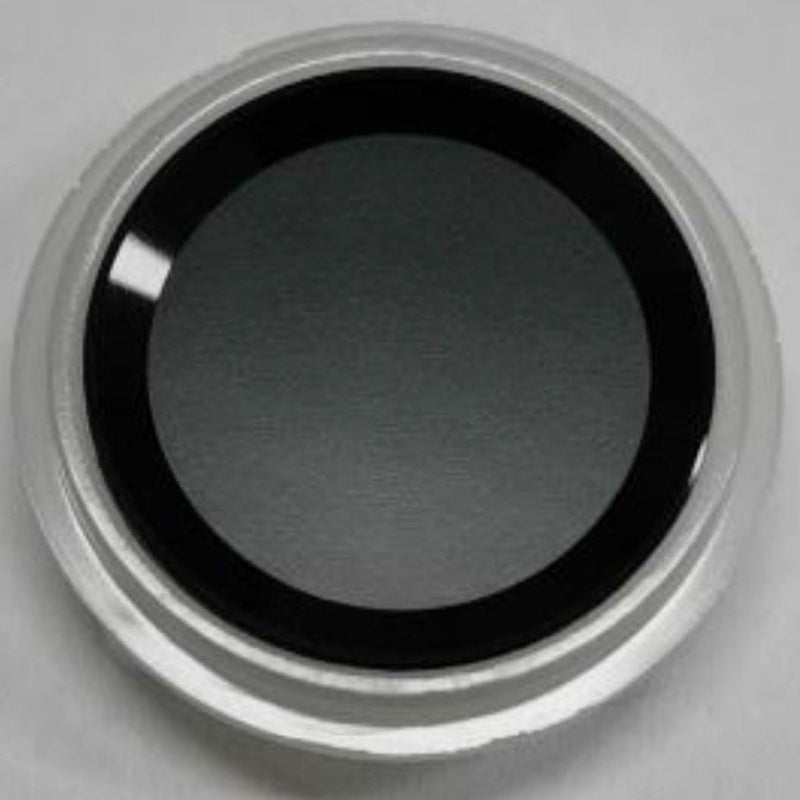

GK028 Round Integrated Fingerprint Module with Perimeter LED Ring
Developed for fingerprint applications across multiple industries, this multifunctional fingerprint module integrates a capacitive fingerprint sensor, MCU and fingerprint algorithm into one component. It is characterized by low power consumption, stable performance, outstanding image quality, excellent anti-static capability and favorable consistency. The module offers strong compatibility with all types of problematic fingerprints and delivers reliable recognition for dry, wet, faint and scratched fingerprints.
Pixel: 160*160

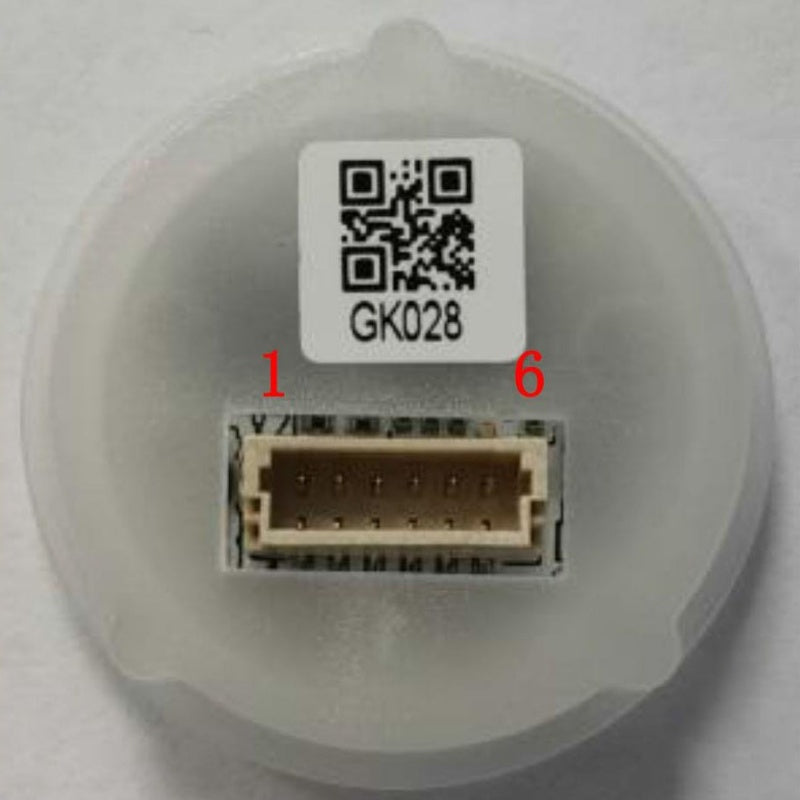

Dimensions: Diameter 19 mm, Height 6.25 mm; vertical connector with 1.0 mm pitch
Press-type capacitive fingerprint sensor
Clear image quality
Resolution: 508 dpi
8-bit grayscale pixel
Ultra-low power consumption design
ESD protection: 15KV air discharge / 8KV contact discharge
Wake-up function
Secure MCU
Advanced fingerprint algorithm
Vibrant multi-color lighting effects of perimeter LED ring
