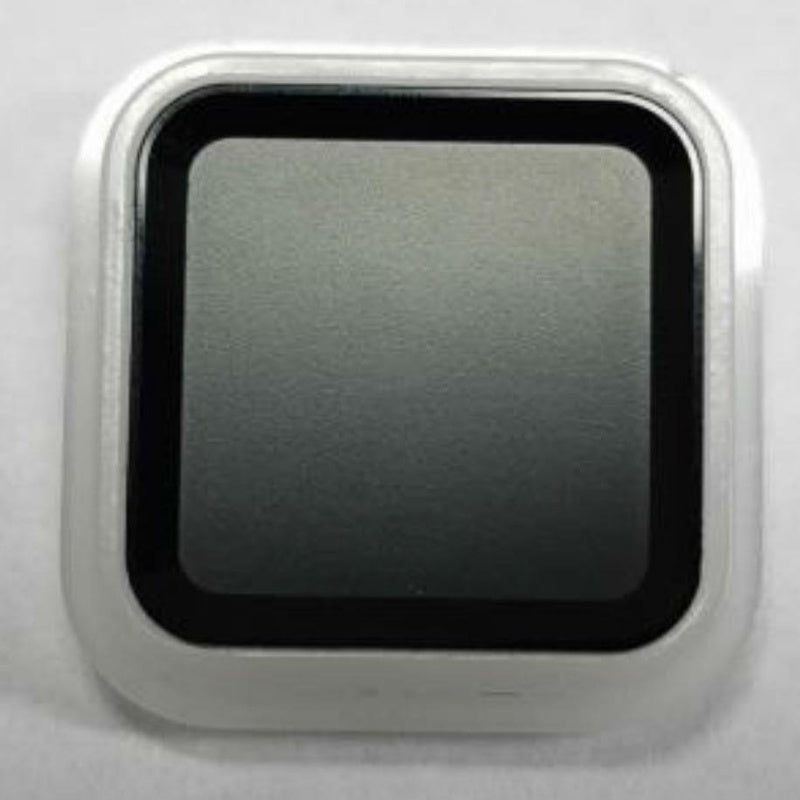

GK023 Thin Integrated Square Fingerprint Module with Perimeter LED Ring
Developed for fingerprint applications across the industry, this multi-functional fingerprint module integrates a capacitive fingerprint sensor, MCU and fingerprint algorithm into one unit. It features low power consumption, reliable performance, excellent image quality, strong ESD resistance and high consistency. The module boasts great adaptability to various special fingerprint conditions and delivers reliable recognition performance for dry, wet, faint or scratched fingerprints.
Pixel: 160*160

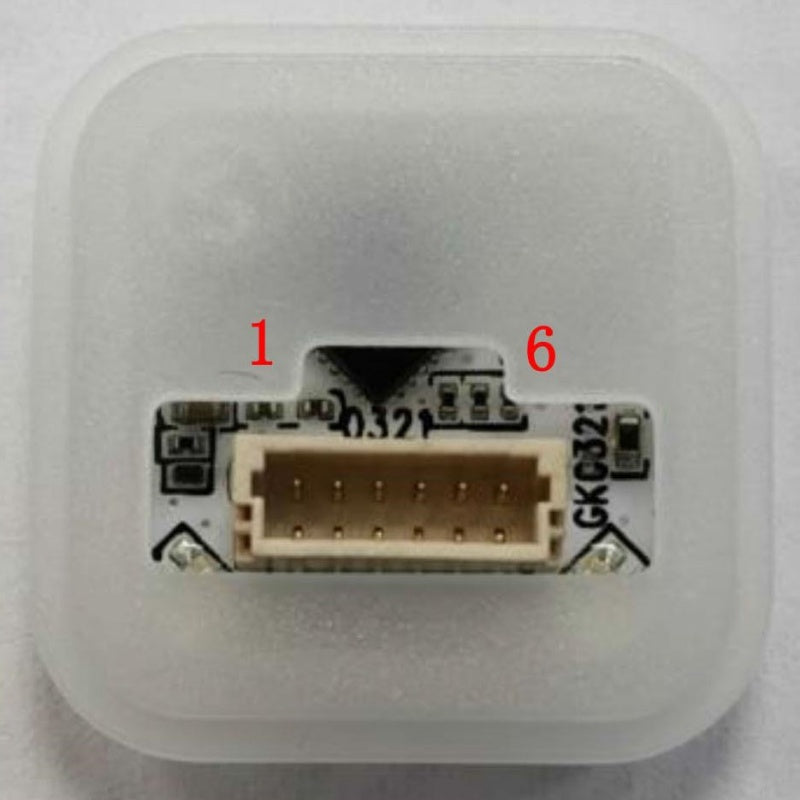

Dimensions: Width 19 mm, Height 6.25 mm; vertical connector with 1.0 mm pitch
Press-type capacitive fingerprint sensor
High-definition image quality
Resolution: 508 dpi
8-bit grayscale pixel
Ultra-low power consumption design
ESD protection: 15KV air discharge / 8KV contact discharge
Wake-up function
Secure MCU
Advanced fingerprint algorithm
Vibrant multi-color lighting effects for perimeter LED ring
